DUMMY ALARM Circuit

Published:2013/3/4 21:48:00 Author:Ecco | Keyword: DUMMY ALARM | From:SeekIC

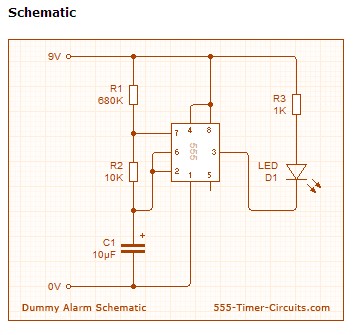

This Dummy Alarm project makes an LED flash briefly once every 5 seconds to imitate the indicator light of a real alarm. Overview The circuit is designed to use very little current to prolong battery life so that it can be left on permanently. An on/off switch is not included, but could be added if you wish. The 7555 timer IC used is a low power version of the standard 555 timer. A 憇uperbright?red LED is used because this provides a bright flash with a low current. The LED is off for most of the time so the average total current for the circuit is less than 0.2mA. With this very low current a set of 3 alkaline AA cells should last for several months, maybe as long as a year.
