LATCHING_BURGLAR_ALARM

Published:2009/6/22 23:46:00 Author:May | From:SeekIC

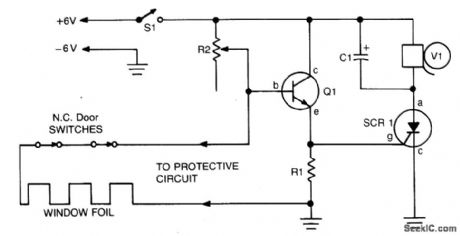

When the protective circuit is interrupted (opened), the alarm sounds. To set the circuit, adjust R2 (with protective circuit open) for 1 V across R1.
