LATCHING_RELAY_ALARM_CIRCUIT

Published:2009/6/24 5:30:00 Author:May | From:SeekIC

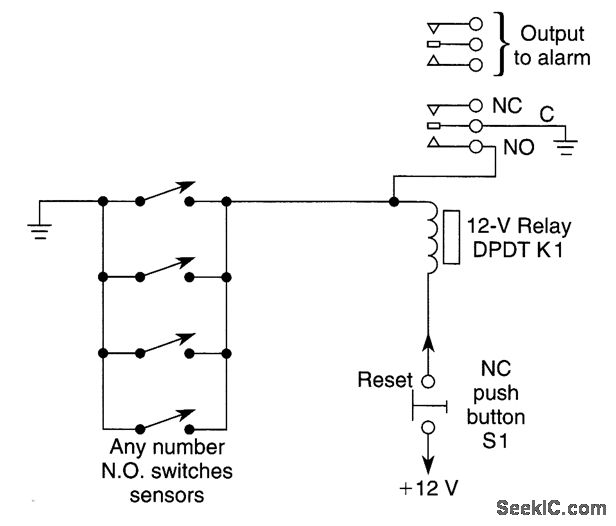

Momentarily closing any sensors will cause K1 to latch. S1 must be depressed to reset circuit. If any sensor is still closed circuit will not reset.
