SIMPLE_FLOOD_ALARM

Published:2009/6/23 3:43:00 Author:Jessie | From:SeekIC

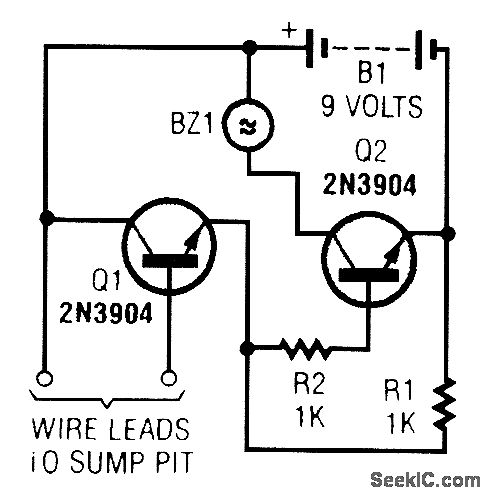

A common collector amplifier drives a 2N3904 switch to sound alarm BZ1. The wire leads to wa-ter sensor or surnp pit, level switch, etc. and used to allow the alarm to operate and be mounted in a dry place.
