SIMPLE_LIGHT_ACTIVATED_ALARM

Published:2009/6/17 2:23:00 Author:May | From:SeekIC

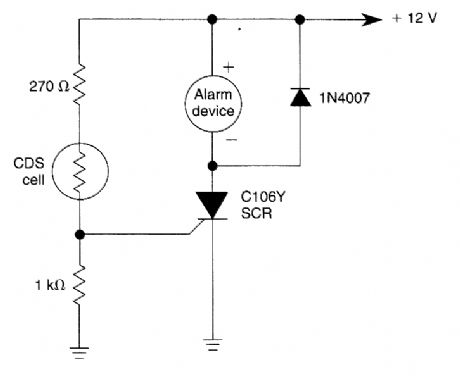

A cadmium-sulfide photocell conducts when a light beam strikes it. This triggers the SCR and activates the alarm device.
