Audio Indicator

Published:2012/12/3 20:22:00 Author:muriel | Keyword: Audio Indicator | From:SeekIC

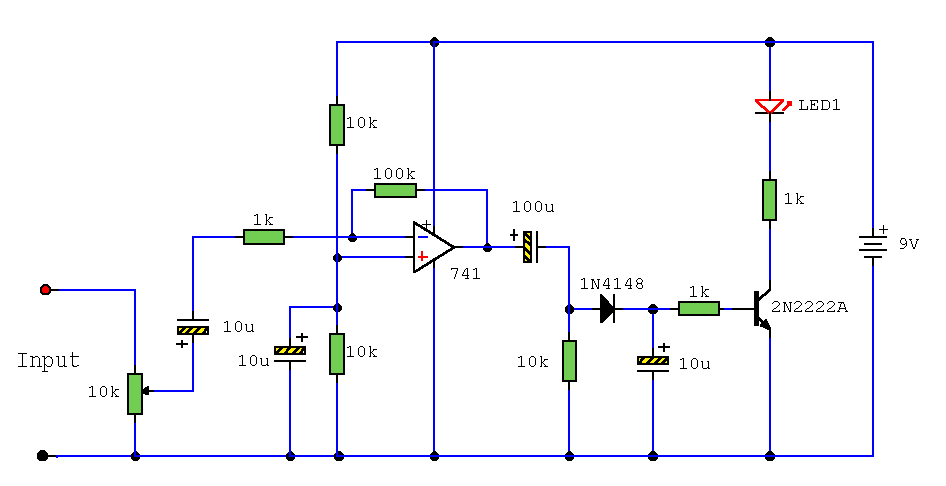

This circuit can be used to remotely monitor a loudspeaker, alarm, or audio source for presence of an audio waveform. It can also be directly connected across loudspeaker terminals used as a peak indicator.
