Eight groups electronic responser circuit with CD4043,LM386

Published:2011/8/25 20:16:00 Author:chopper | Keyword: Eight groups, electronic responser | From:SeekIC

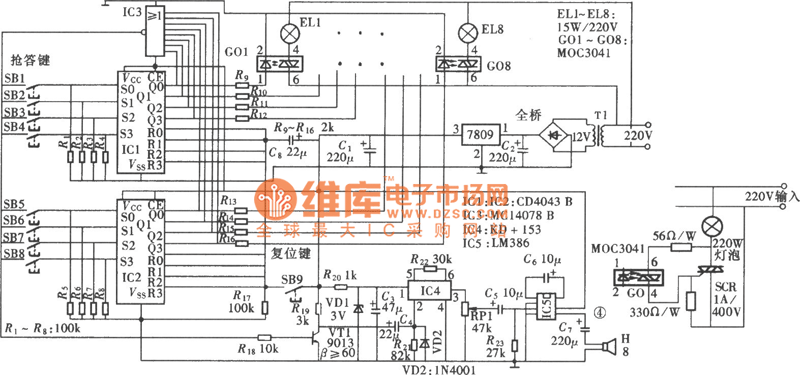

The eight groups electronic responser circuit can be used by 8 participants,and it is of functions like interlock and sound and light indication,which is shown as picture. Circuit consists of button input of eight groups and interlock circuit, sound and light indication circuit, reset circuit and the power supply circuit.
