Office Electric Heating Plate Automatic Switch Circuit

Published:2011/4/27 6:43:00 Author:Robert | Keyword: Office Electric Heating Plate, Automatic Switch | From:SeekIC

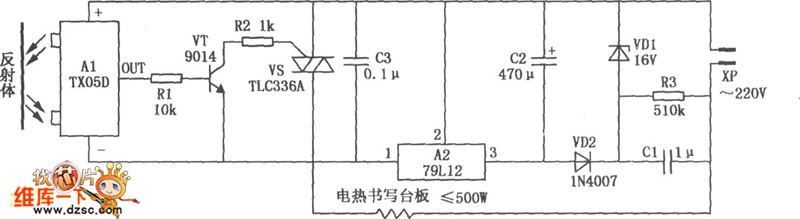

Office Electric Heating Plate Automatic Switch Circuit is shown as below. Based on the normal office desk electric plate heter, it equips the infrared reflection automatical switches composed of the TX50D module, can achieve the goal that automatical power up and heating whenpeople are workingon the plate, and automatic power down and stop heating when nobody there. This circuit could not only save the power, avoid the fash brought by the frequent plugs, but also can extend the life of the office electric heating plate and prevent the occurrence of accidents, it could be connected directly to the normal office electric heating plate, and is easy to produce, stable to work.
