STVO117A digital video coding integrated circuit

Published:2011/6/14 9:16:00 Author:chopper | Keyword: digital video, coding, integrated circuit | From:SeekIC

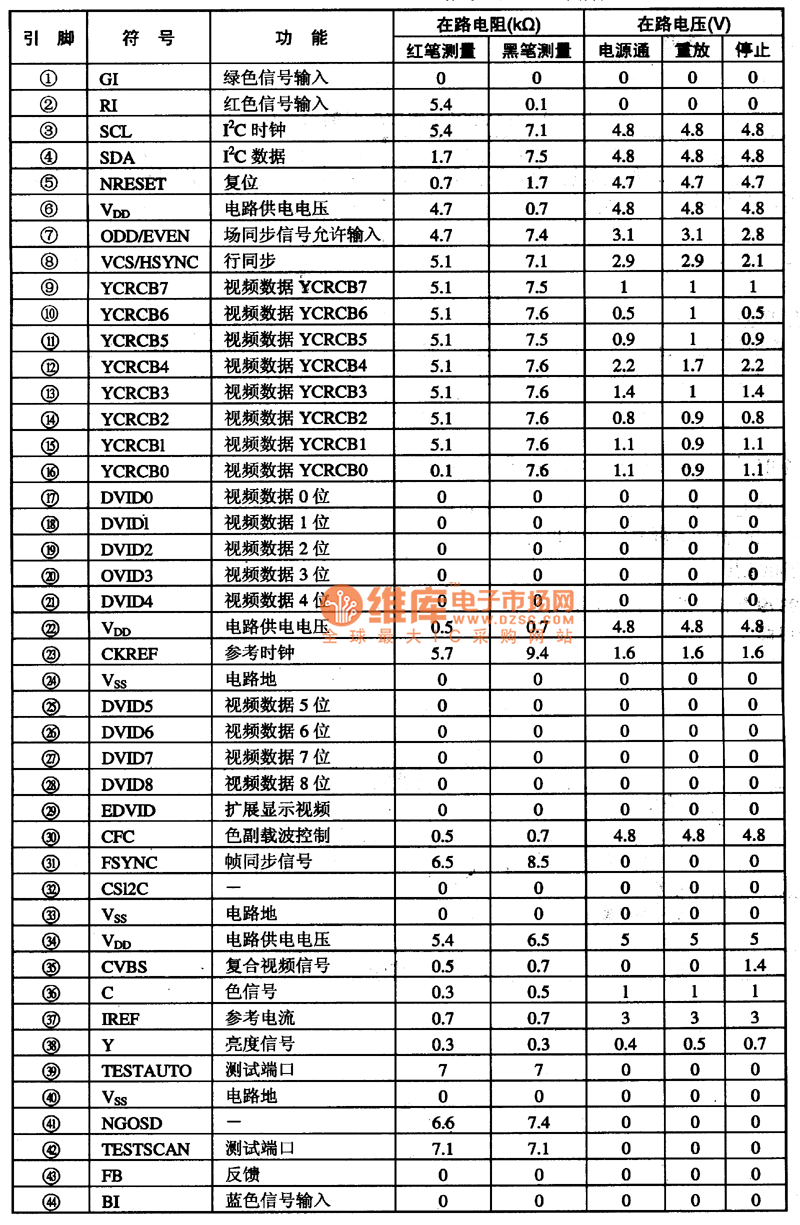

STVO117A is a digital video coding integrated circuit produced by French Company SGS-THOMSON and it is applied to various homemade and import DVD players.1.function characteristicsSTVO117A integrated circuit adopts I2C bus-mastering,and it can code input 8bit or 16bit video data stream into analog composite video signal or S video Y/C signal.It includes multipath output selector,matrixing circuit,modulator,caption generator,color sub-carrier combiner circuit and clock sync generator,three 9bit DAC circuit and IC2 bus interface circuit.2.function and data of pinsSTV0117A integrated circuit adopts single inline package.The function and data of pins of integrated circuit are shown as chart 1.
