TAl218N video,audio converting switch integrated circuit

Published:2011/6/16 22:45:00 Author:chopper | Keyword: video,audio, converting, switch integrated circuit | From:SeekIC

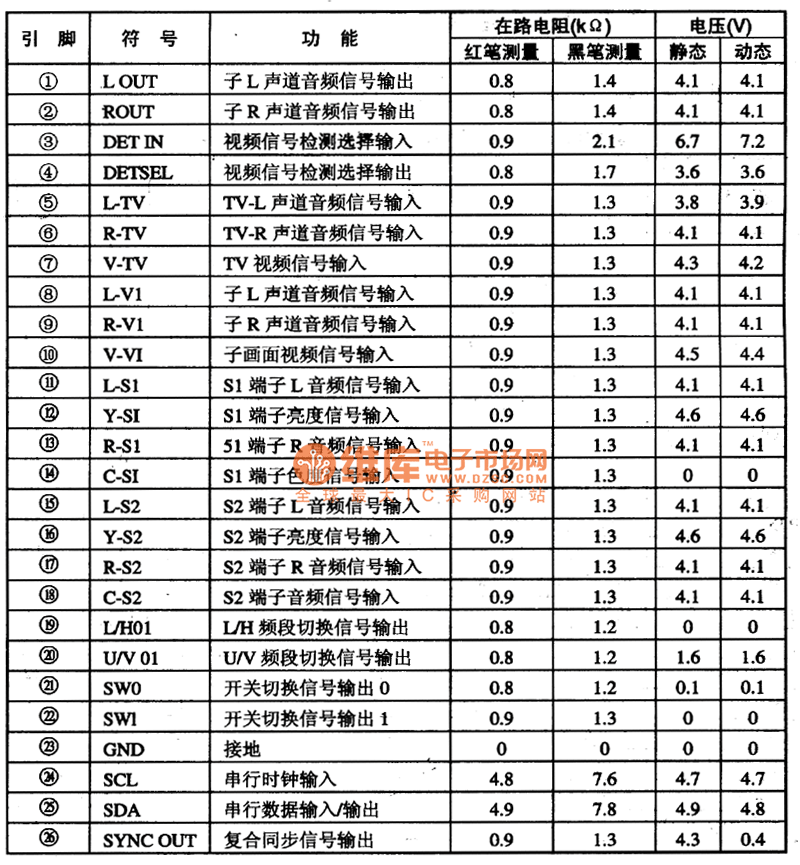

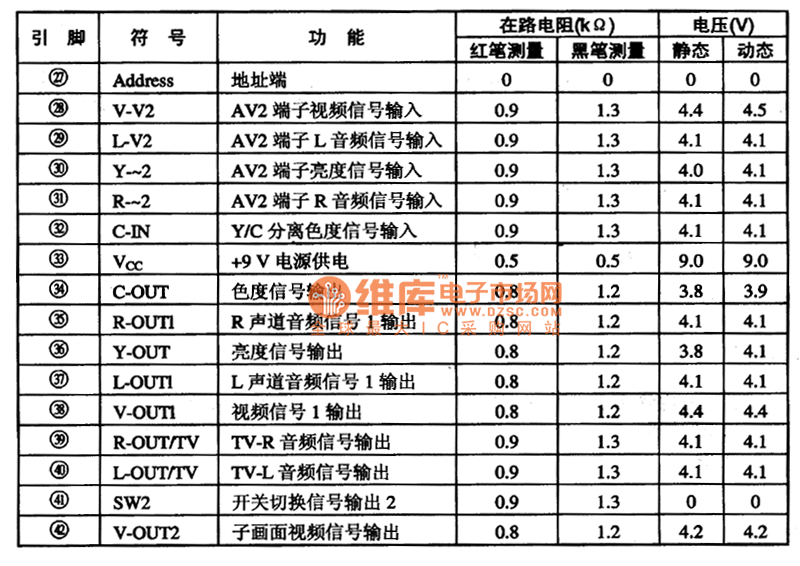

TAl218N is a video/audio converting switch circuit,and it is applied to homemade and import large-screen colour TVs widely.1.function characteristicsTAl218N integrated circuit includes I2C bus interface circuit,main/sprite video signal switching circuit,TV/AV audio switching circuit,Y/C separation signal switching circuit,TV video/audio switching circuit,sub-audio,flare,luminance signal switching circuit,L/H,U/V frequency band switching circuit,and other miscellaneous function circuits.
