BALANCE_AND_LOUDNESS_CONTROL

Published:2009/7/10 6:13:00 Author:May | From:SeekIC

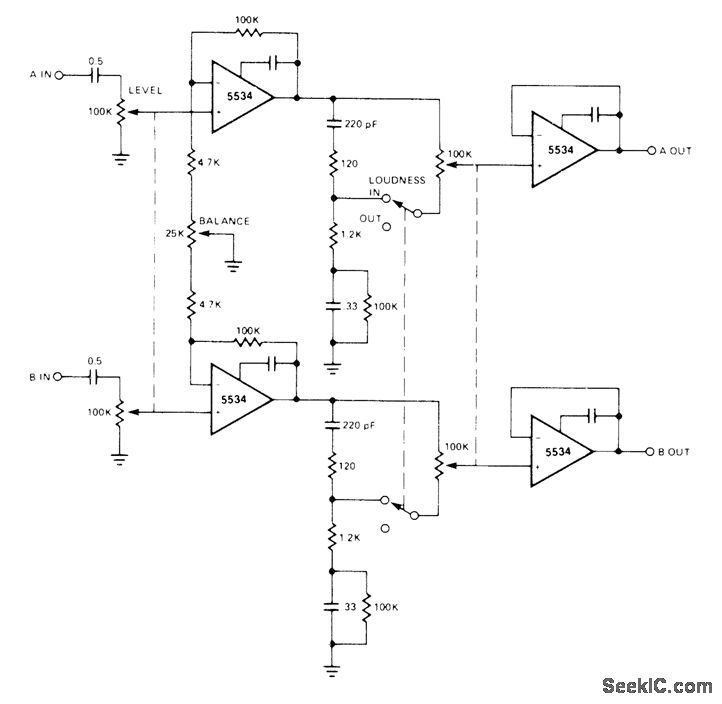

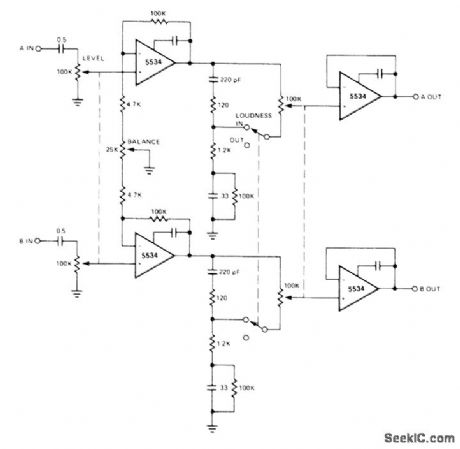

Provides bass boost at low listening levels to compensate for nonlinearity of human hearing sys-tem. Balance control permits equalizing volume from left and right loudspeakers at particular listening location.- Signetics Analog Data Manual, Signetics, Sunnyvale, CA, 1977, p 640.
