BASS_BOOST_OR_LOUDNESS_CONTROL

Published:2009/7/15 2:35:00 Author:Jessie | From:SeekIC

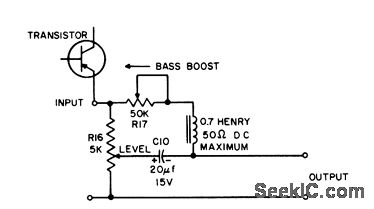

Operates on output of preamp.Gives operator independent control of level of bass or amount of bass boost desired. May also be used as loudness control.－ Transistor Manual, Seventh Edition, General Electric co.,1964,p 254.
