BATH_TEMPERATURE_CONTROL

Published:2009/7/21 21:48:00 Author:Jessie | From:SeekIC

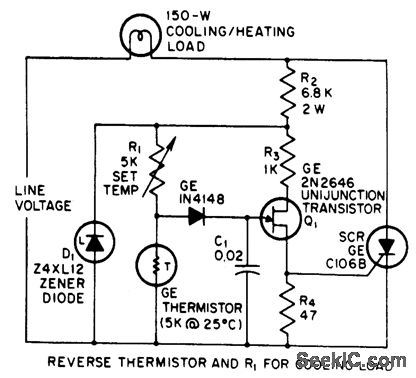

Used to maintain temperature of photographic developer solution constant. When temperature drops, thermistor resistance increases and scr is turned on earlier in each cycle by ujt.-J. Embinder, SCRs in the Consumer Market, EEE, 14:8, p 100-103.
