Basic Differentiator Circuit

Published:2011/7/21 0:58:00 Author:Sue | Keyword: Basic, Differentiator | From:SeekIC

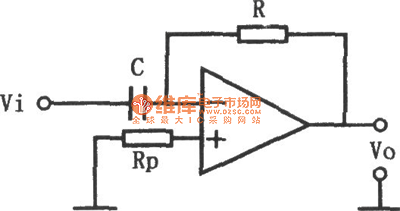

The picture shows the basic differentiator circuit. The circuit can realise differential operation of input and output. The relation between input and output is v0=-RC dv1/dt.
