Basic Transistor Switches

Published:2013/6/18 21:03:00 Author:muriel | Keyword: Basic Transistor, Switches | From:SeekIC

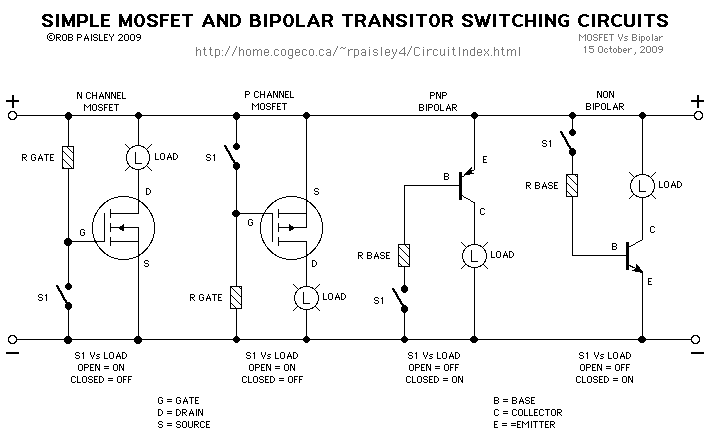

MOSFET and Bipolar transistors are often used for high speed switching applications. Below are four very simple examples of this. ON-OFF toggle switches are used in place of an electronic control circuit.
