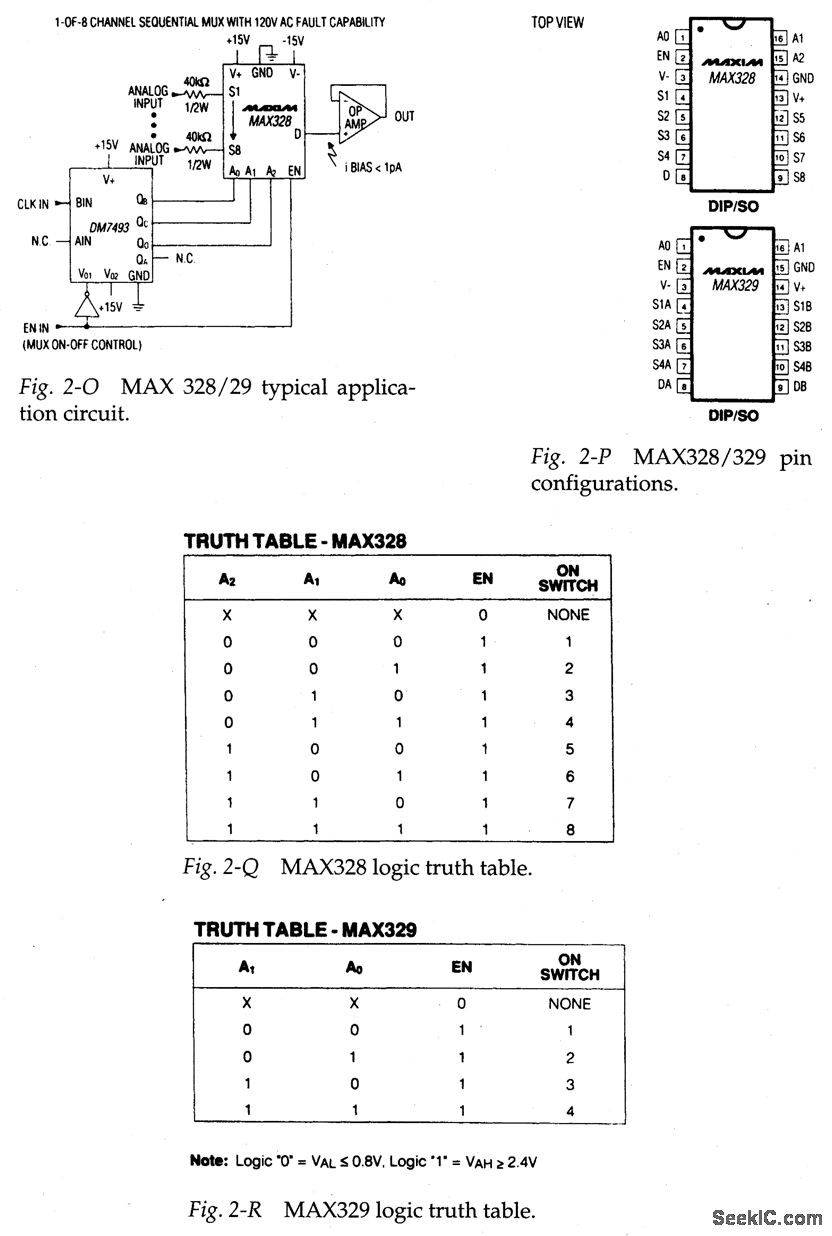

Figures 2-O and 2-P shows the typical application circuit and pin configuration, respectively; for the MAX328/29. Figures 2-Q and 2-R shows the logic truth tables for the MAX328 and MAX329, respectively. This ultra-low-leakage CMOS analog mux is tested by applying and removing +5 V to the control pins, and checking that the corresponding switches open and close. Simple sine waves can be used at the analog inputs, and the op-amp output can be measured on a scope.
