Bass-treble tone control circuit

Published:2013/7/15 20:00:00 Author:muriel | Keyword: Bass-treble tone, control circuit | From:SeekIC

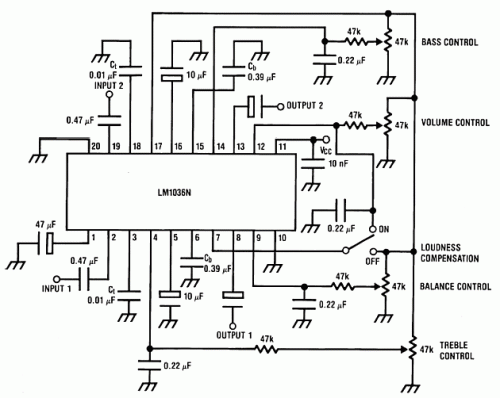

The LM1036 is a DC controlled tone (bass/treble), volume and balance circuit for stereo applications in car radio, TV and audio systems. An additional control input allows loudness compensation to be simply effected. Four control inputs provide control of the bass, treble, balance and volume functions through application of DC voltages from a remote control system or, alternatively, from four potentiometers which may be biased from a zener regulated supply provided on the circuit. Each tone response is defined by a single capacitor chosen to give the desired characteristic. Features:Wide supply voltage range, 9V to 16VLarge volume control range, 75 dB typicalTone control, ±15 dB typicalChannel separation, 75 dB typicalLow distortion, 0.06% typical for an input level of 0.3 VrmsHigh signal to noise, 80 dB typical for an input level of 0.3 VrmsFew external components required Note: Vcc can be anything between 9V to 16V and the output capacitors are10uF/25V electrolytic.
