Control circuit composed of six inverter and push pull circuit

Published:2011/11/23 2:25:00 Author:May | Keyword: Control, six inverter, push pull | From:SeekIC

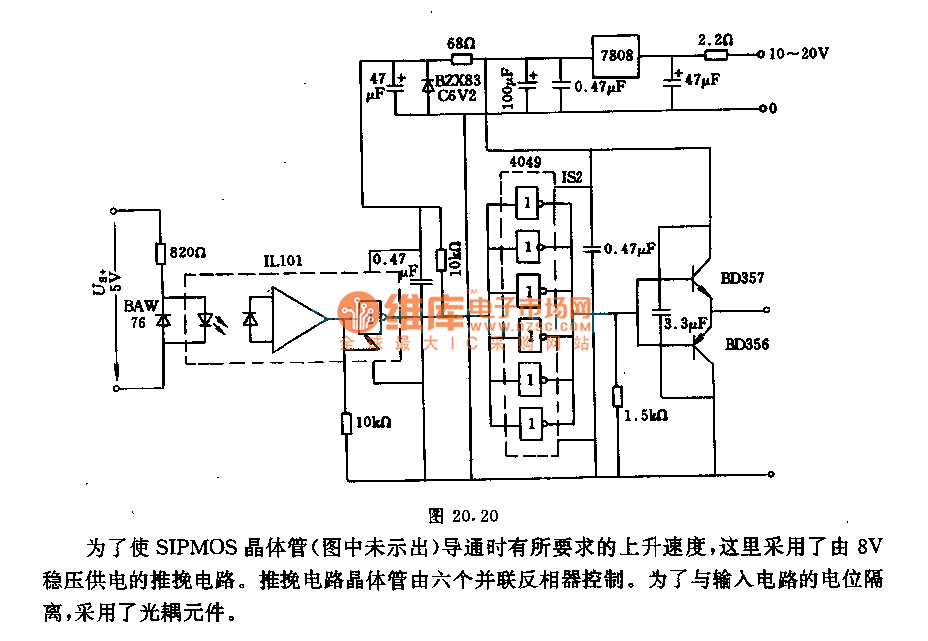

Here we adopt push pull circuit supply by 8V constant voltage in order to make SIPMOS transistor (it is not shown in the diagram) have the requiredraising speed when it is turned on. Push pull circuit transistor is controlled by six inverters in parallel connection. It adops optocoupler conponents in order to isolate with the level of input circuit.
