Controllable Integrator(F007) Circuit

Published:2011/7/22 6:38:00 Author:Sue | Keyword: Controllable Integrator | From:SeekIC

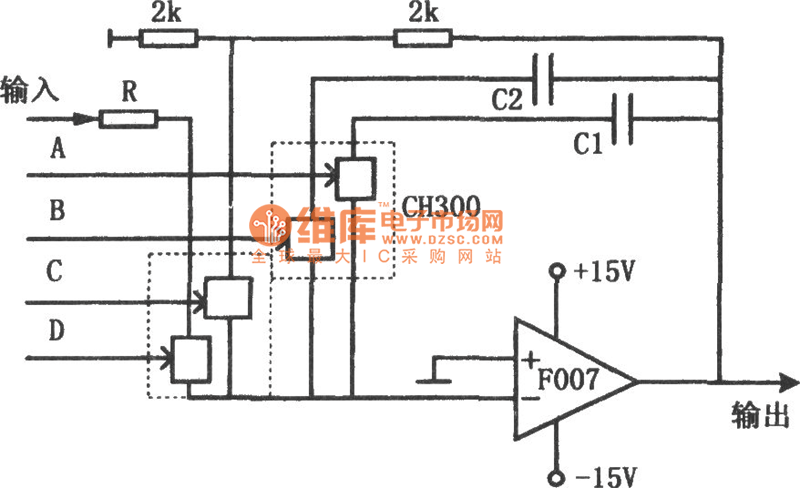

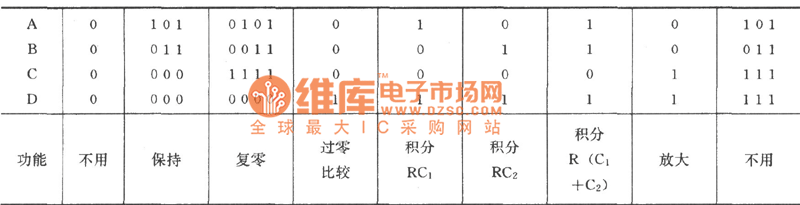

Figure1 Controllable integrator (F007) circuit Table1 Controllable integrator's function table. The picture shows the controllable integrator circuit. The circuit has controllable integrator with a complex zero, maintain and different integration time constants. The analog switch is CH300, operational amplifier is F007. In the picture, the values of R,C1,C2 can be configure according to actual requirement. The different control states of the four analog switches can drive the circuit to complete different functions. The diagram shows the relations between the states and functions of control terminal A,B,C,D.
