Demagnetizer energy-saving controller circuit diagram

Published:2011/8/11 1:09:00 Author:Ecco | Keyword: Demagnetizer, energy-saving controller | From:SeekIC

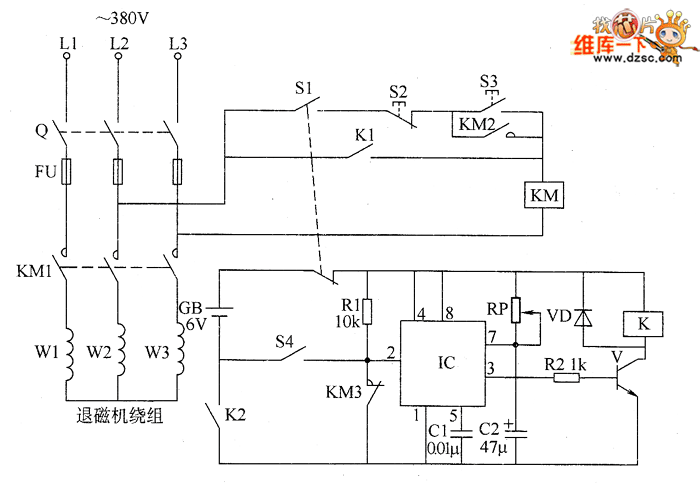

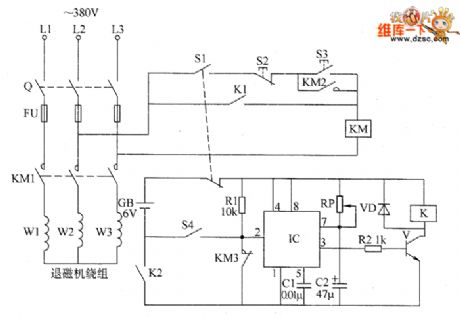

The demagnetizer energy-saving controller circuit is composed of the relay K, transistor V, time-base integrated circuit IC, diode VD, resistors R1, R2, potentiometer RP, capacitors C1, C2, battery GB, limit switch S4 and manual / automatic control switch S1, and other components, and it is shown as the chart. Knife switch Q, start button S3, stop button S2, contactor KM form the original manual for the demagnetizer machine control circuit. R1 and R2 select the 1/4W metal film resistors. RP uses the organic solid potentiometer. VD selects the 2CPl0 or 1N4007 silicon rectifier diodes.
