Differential Integrator Circuit

Published:2011/7/21 1:05:00 Author:Sue | Keyword: Differential, Integrator | From:SeekIC

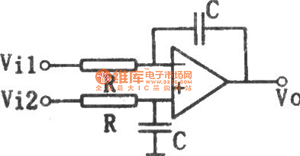

The picture shows the differential integrator circuit. Put R,C on the same phase side of the basic integrator according to the balanced symmetrical structure, then we will get such differential integrator circuit. Figure1 Differential Integrator Circuit
