Digital Clock with Arduino and DS1307

Published:2013/8/15 21:12:00 Author:lynne | Keyword: Digital Clock with Arduino and DS1307 | From:SeekIC

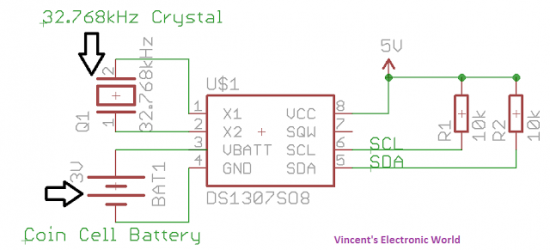

In this article you will learn how to make a digital clock using Arduino and the DS1307 RTC IC. What is DS1307 IC actually? Well, it is a Real Time Clock (RTC) IC that is simple to use, low cost and easy available. The IC basically is able to count the date and time accurately and it will continue its counting if the backup battery – coin cell battery is there although the mainsupply to the IC is cut off.
