Division Circuit 1(MPY100)

Published:2011/7/21 7:31:00 Author:Sue | Keyword: Division Circuit | From:SeekIC

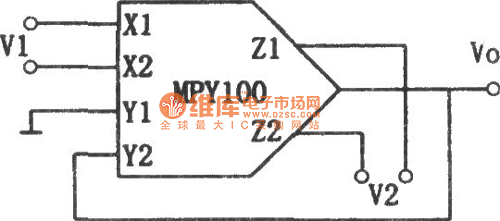

The picture shows the division circuit. The circuit is composed of divider and multiplier integrated circuit MPY100. The input signal is V1,V2. The output Vo=10V2/V1. Such divider is composed by connecting the multiplier to the operational amplifier's return circuit. V1's input range is -0.2V-10V. V2's input range is -10V-10V. When V1 is very small, the circuit's error is large.
