Division Circuit 2(MPY600)

Published:2011/7/21 7:39:00 Author:Sue | Keyword: Division Circuit | From:SeekIC

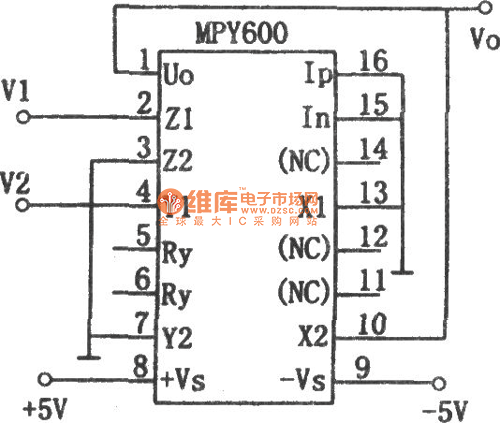

The picture shows the division circuit. It consists of multiplier MPY600. Its input is V1,V2, and the full input range is ±2V. Its output Vo=2V1/V2. When the integrated circuit is used as division application, its band width is related to V2. The larger is V2, the larger is the band width.
