Division Circuit 3(4302)

Published:2011/7/22 8:01:00 Author:Sue | Keyword: Division Circuit | From:SeekIC

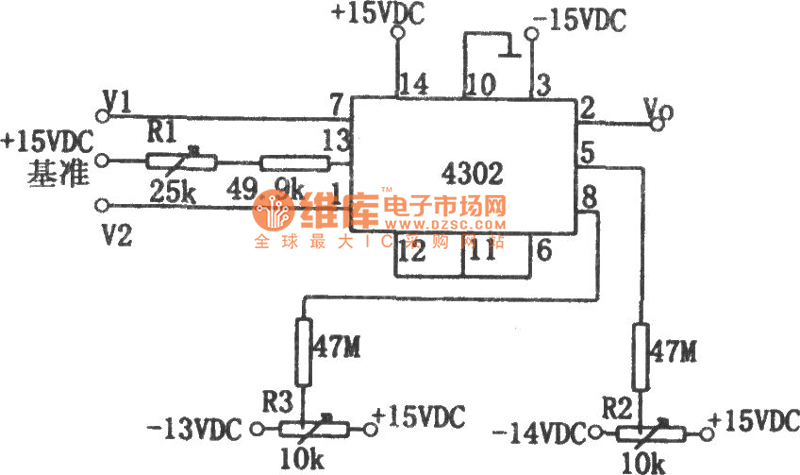

The division circuit shown in the picture consists of integrated block 4302. Its input is V1,V2, and output Vo=10V1/V2. Its input signal range is: 0.03V≤V1≤10V,0.03V≤V2≤10V. When the temperature is 25℃, the typical error is ±25mV, and the maximum error is ±50V. What's more, the output voltage precision is effected by temperature, and its temperature coefficient is ±1mV/C. When the temperature is 25℃, the output offset voltage is ±10mV, and the temperature coefficient is ±1mV/C.
