Division circuit with MC1494 and LM307

Published:2011/8/18 1:10:00 Author:Jessie | Keyword: Division | From:SeekIC

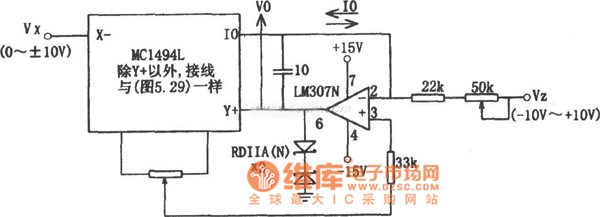

This circuit's output voltage Vo is Vo=10Vz/Vx. The input signal Vx and Vz can be positive and negative, so this circuitis afour quadrant division circuit. Then the voltage-regulator diode in the output end of LM307N is the output voltage clamp diode when the input Vx decreases.
