Enable_delay_tests

Published:2009/7/23 22:03:00 Author:Jessie | From:SeekIC

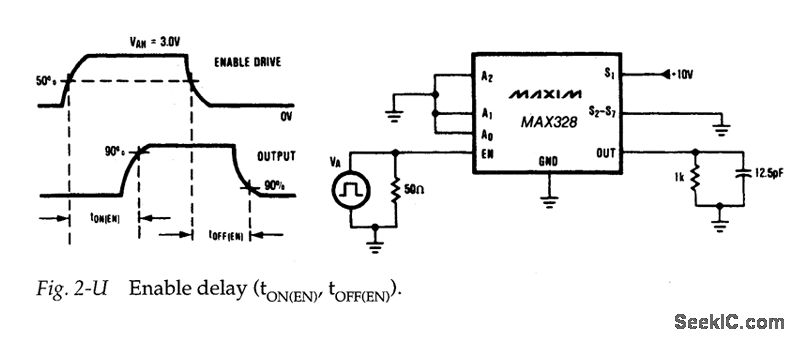

Figure 2-U shows a test circuit for measuring enable time for the MAX328/29. Typical enable turn-on time is 1μs for the MAX328/29M and 1.5μs for the MAX328/ 29C/E.
