Extended_range_Fahrenheit_temperature_sensor_single_supply

Published:2009/7/24 1:57:00 Author:Jessie | From:SeekIC

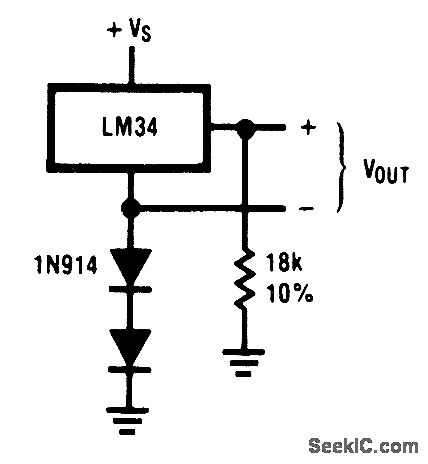

Fig, 13-2 This circuit is similar to that of Fig. 13-1, except that the temperature range is extended, -50° to +300°F, using a single supply. National Semiconductor, Linear Applications Handbook 1991. p 1076.
