FAIL_SAFE_TWT_FILAMENT_REGULATOR

Published:2009/7/21 10:33:00 Author:Jessie | From:SeekIC

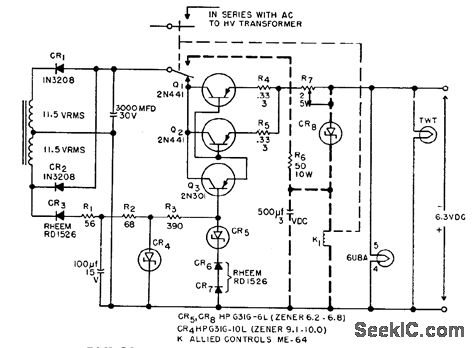

Designed to supply well-regulated voltage of 6.3 V d-c at 2 amp to filament of travelling-wave tube, while providing temperature compensation and fail-safe capability. Protective circuit shown in heavy dotted lines operates if one of transistors shorts or if filament voltage rises for any other reason. -G. Stanley, Fail Safe DC Filament Regulator, EEE, 10-6, 32-33.
