FLASHINGLED_CONTROLLER

Published:2009/7/9 2:18:00 Author:May | From:SeekIC

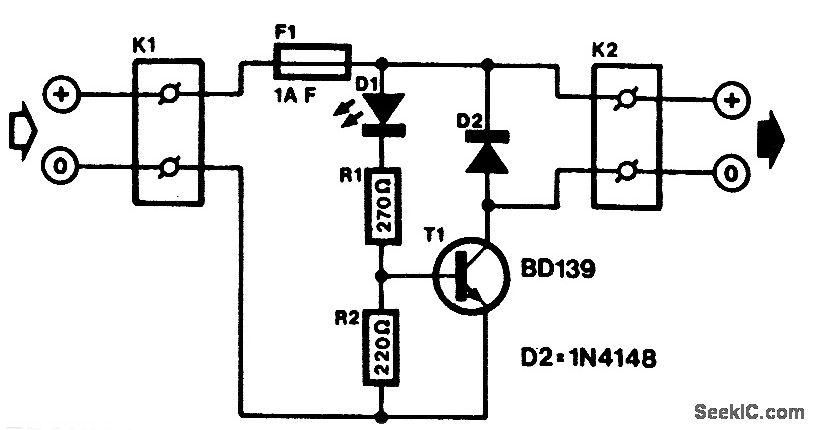

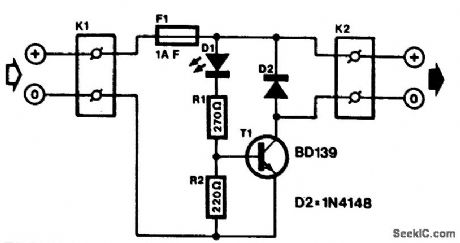

The LED with integrated flasher is connected in series with the base-emitter junction of transistor T1. Thus, the load connected to K2 is switched on and off in rhythm with the flash rate. This load can be a relay or a lamp. The maximum collector current of the transistor (of the BD139=750mA) must not be exceeded. If that is not sufficient, a power Darlington can be used, which will give some amperes. The current drawn by the circuit under no-load conditions amounts to 20mA.
