Five control lamp switch circuit

Published:2011/7/5 21:29:00 Author:zj | Keyword: Five control, lamp switch circuit | From:SeekIC

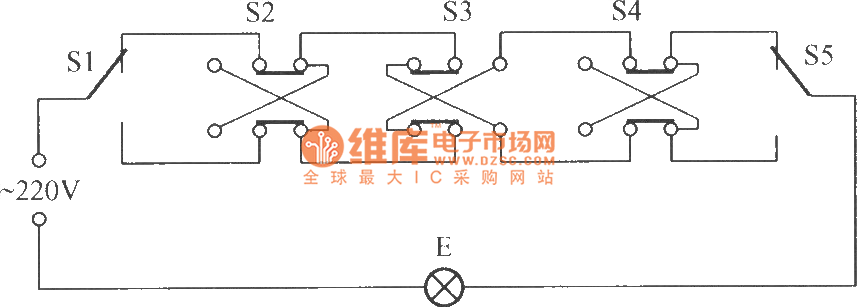

As the Figure shows, it isa five control switch circuit. S1 ~ S5 are respectively arranged in 5 different places, but they can independently control lamp E lit or extinguished. Among them: S1, S5 1 x 2 single-pole double-throw switch, S2 ~ S4 with 2 x 2 double pole double throw switch.
