Five flash lamp string circuit (3)(Y977A)

Published:2011/7/5 21:59:00 Author:zj | Keyword: Five flash, lamp string circuit | From:SeekIC

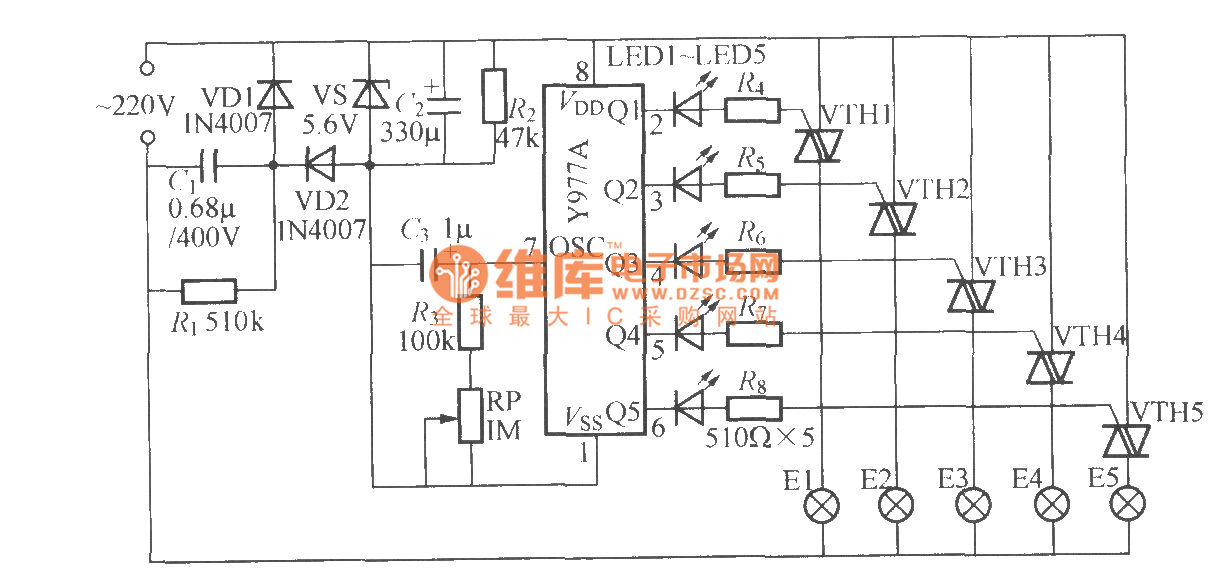

As thecircuit shown in the figure , VTH1 ~ VTH5can useMAC94A4 type small plastic bidirectional thyristor. The maximum drive currentis 1A.
