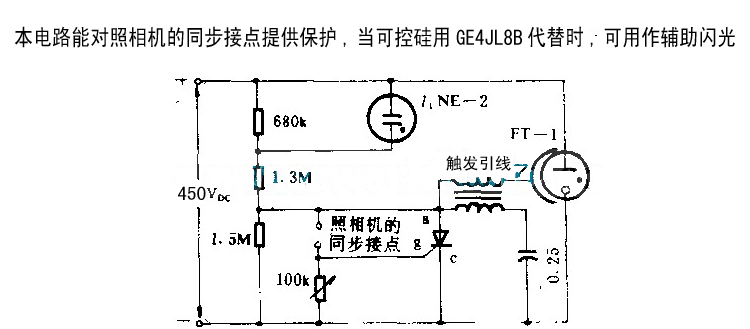

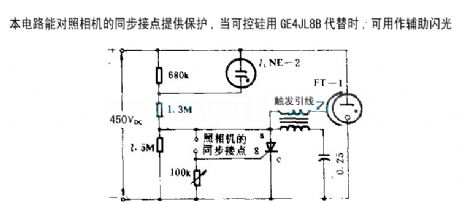

Flash lamp SCR trigger circuit

Published:2011/5/19 19:17:00 Author:Christina | Keyword: Flash lamp, SCR, trigger | From:SeekIC

This circuit can provide protection for camera synchronous contacts, if we use the GE4JL8B instead of the SRC, this circuit can be used as the auxiliary flash.
