Generic Subtractor Circuit

Published:2011/7/14 8:36:00 Author:Joyce | Keyword: Generic , Subtractor | From:SeekIC

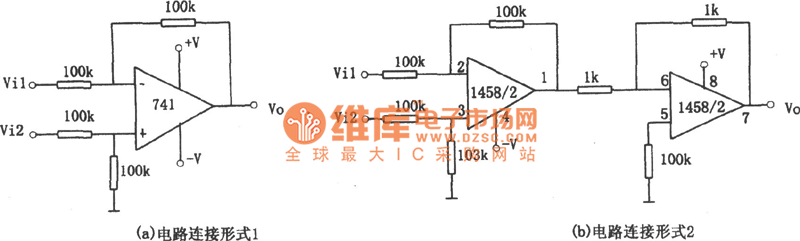

The relation of input and output of the circuit in figure (1) is :V0=Vi2-Vi1. The polarity of the output signal voltage and input voltage of the amplifier are the same. If inverted output is required, the circuit shown in fiure (b ) can be adopted. The relationship of input and output of it is :Vo=Vi1-Vi2
