HIGH_GAIN_PHASE_CONTROL

Published:2009/7/20 6:25:00 Author:Jessie | From:SeekIC

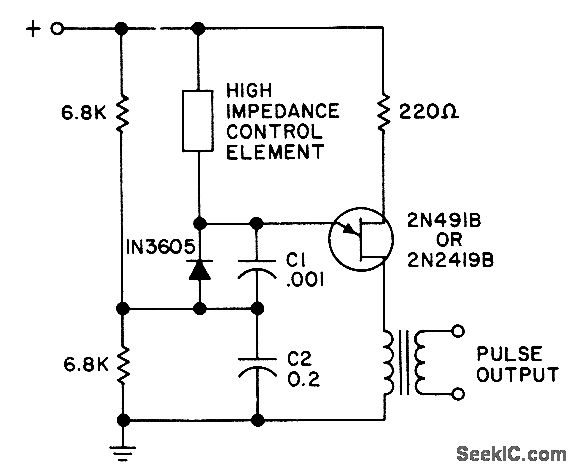

Use of two different sizes of charging capacitors in series increases effective gain up to 10,000 times that of conventional ujt/scr phase-control circuit. Eliminates amplification.- Transistor Manual, Seventh Edition, General Electric Co., 1964, p 332.
