HIGH_MPEDANCE_RELAY_DRIVER

Published:2009/6/24 5:35:00 Author:Jessie | From:SeekIC

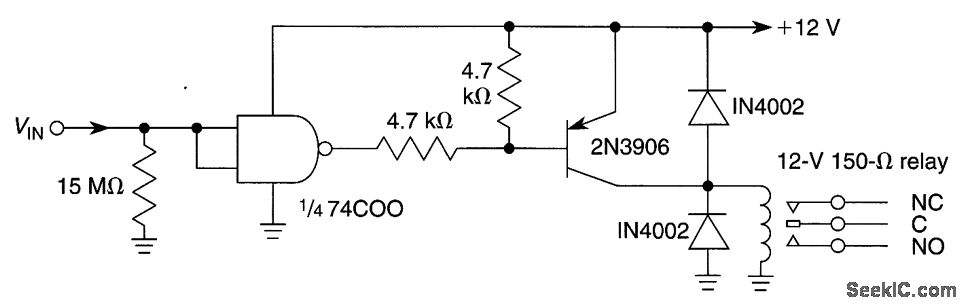

A CMOS gate is used to drive a switching transistor and relay.
