HJ94015 Christmas tree music lights control circuit

Published:2011/7/18 5:53:00 Author:Lucas | Keyword: Christmas tree , music lights , control circuit | From:SeekIC

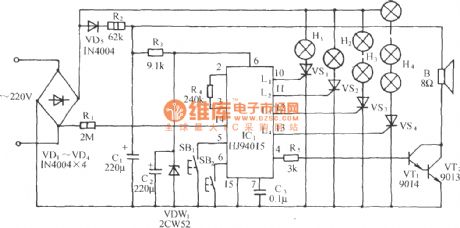

The circuit is shown as the chart. It is composed of the integrated circuit HJ94015 with simple circuit, good audio and video effect. HJ94015 is integrated circuit which is designed specifically for the Christmas tree with DIP-16 plastic structure. It has stored 16 electronic musics, and there are eight modes including full string lights, string lights, string valley lights and different songs singing in a row and so on.
