HORIZONTAL_DRIVE

Published:2009/7/16 21:02:00 Author:Jessie | From:SeekIC

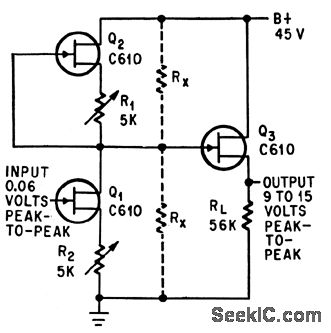

Three field-effect transistors give 45 db voltage gain for 1-cps riangular wave in horizontal defection circuit of crt.-F. J. Murphree and J. H. Hammond Jr., High-gain D.C Amplifier Drives CRT Display, Electronics, 37:19, p 53.
