High Side Current Monitor Specific IC

Published:2013/6/18 3:46:00 Author:muriel | Keyword: High Side , Current Monitor , Specific IC | From:SeekIC

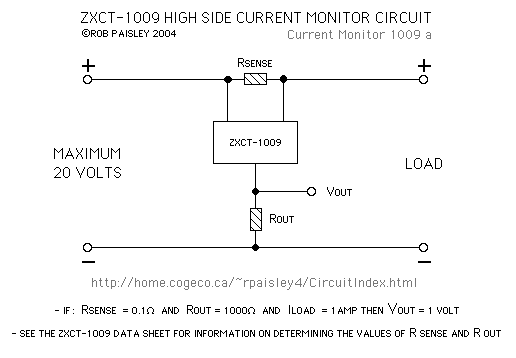

The next circuit uses an integrated circuit that is specifically designed for this application. There are a number of manufactures of these devices and there is also a considerable variety of features that can be had from specific IC's. Due to the internal circuitry of this device, no diodes are required in the supply circuit.
