Homogeneous flow controller circuit diagarm of parallel module

Published:2011/10/17 2:06:00 Author:Ecco | Keyword: Homogeneous flow controller, parallel module | From:SeekIC

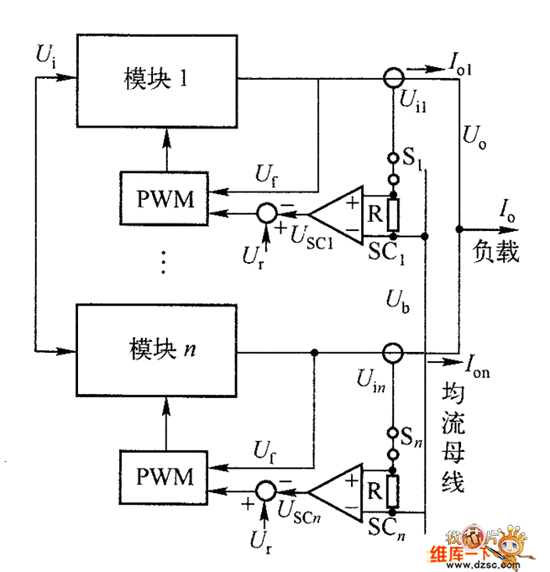

Figure 1 shows the automatic homogeneous flow block diagram composed of number of DC / DC converter modules connected in parallel, and the system's outer loop is the current-control loop, inner loop is the voltage control loop.
