INCANDESCENT_LAMP_TOUCH_CONTROL

Published:2009/7/14 12:18:00 Author:May | From:SeekIC

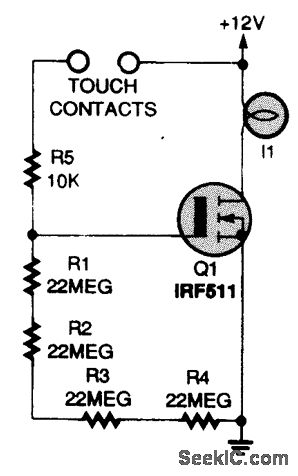

An IRF511 power MOSFET controls an incandescent lamp. This circuit is useful where low-voltage dc is used.
