Improved Inphase Parallel Subtraction Circuit

Published:2011/7/11 2:24:00 Author:Joyce | Keyword: Improved , Inphase, Parallel , Subtraction | From:SeekIC

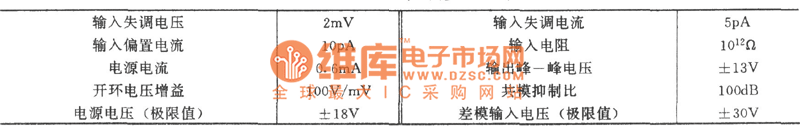

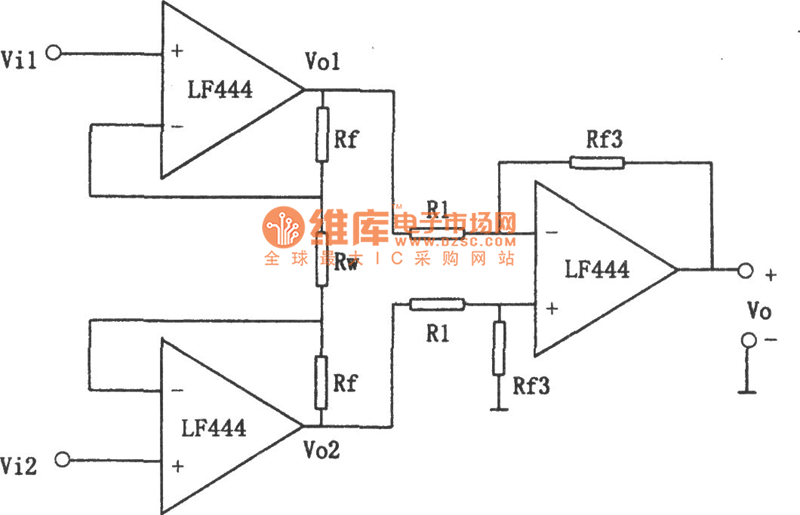

As shown in the figure is an improved inphase parallel subtraction circuit. The circuit is not only characteristic of high input resistance, but also overcomes inconveniences caused by Vo which is floating output .Typical values of main parameters of LF444 :
