Induction heating automatic control circuit

Published:2012/11/4 20:53:00 Author:Ecco | Keyword: Induction heating , automatic control | From:SeekIC

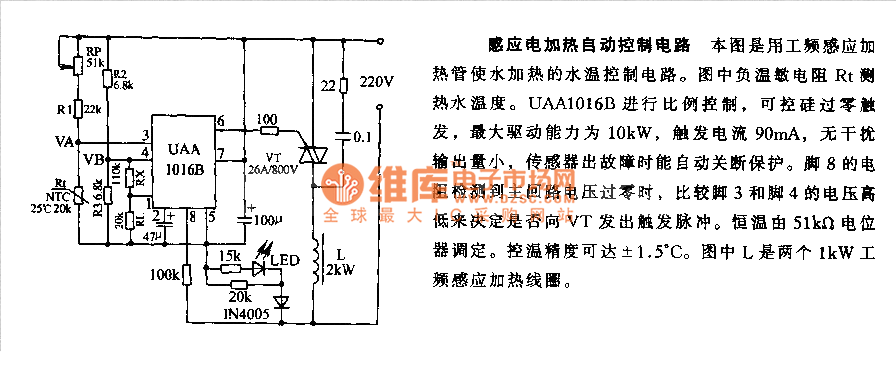

This figure uses labor - frequency induction heating pipe to control the heating water temperature. In Figure, load temperature sensitive resistor Rt is used to measure the temperature of hot water. UAA1016B can make proportional control, SCR is used for zero trigger, the maximum driving capacity is 10kW, trigger current is 90mA, and it can automatically shutdown for protection when sensor occurs failure.
