Input pulse width controller circuit

Published:2012/9/11 20:26:00 Author:Ecco | Keyword: Input pulse, width controller | From:SeekIC

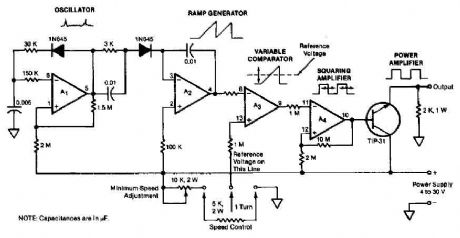

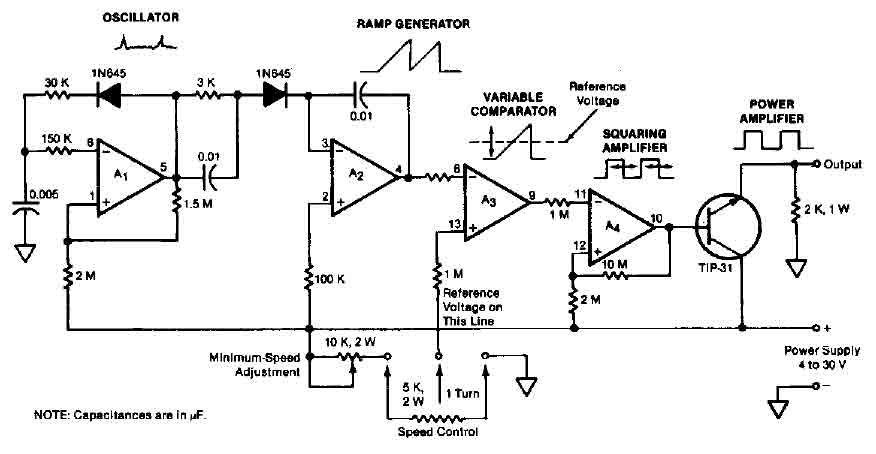

The quad operational amplifier circuit yields full 0 to 100 percent pulse width control. The controller uses an LM3900 requires only a single supply voltage of 4-30 V. The pulse repetition frequency is set by a 1 kHz oscillator amplifier that integrates AI. The oscillator feeds the Az ramp generator, which generates a linear ramp voltage for each pulse oscillator. The ramp signal feeds the inverting input of comparator A3, the control voltage feeds speed non-inverting input. Thus, the output of the comparator is a 1 kHz pulse train, pulse width that changes linearly with control voltage.
