KA9256-two-way power drive integrated circuit diagram

Published:2011/5/6 1:17:00 Author:Nicole | Keyword: two-way power drive | From:SeekIC

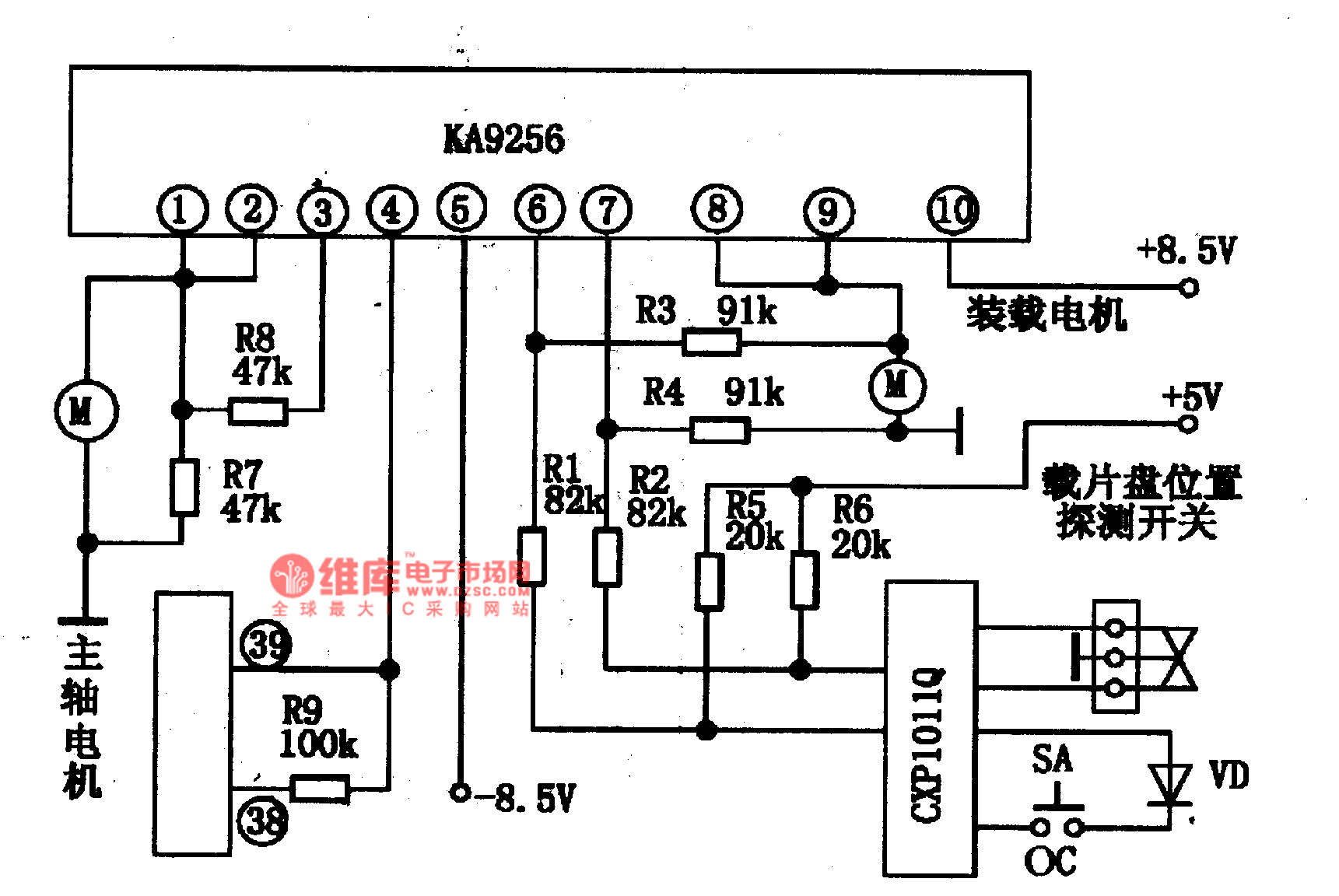

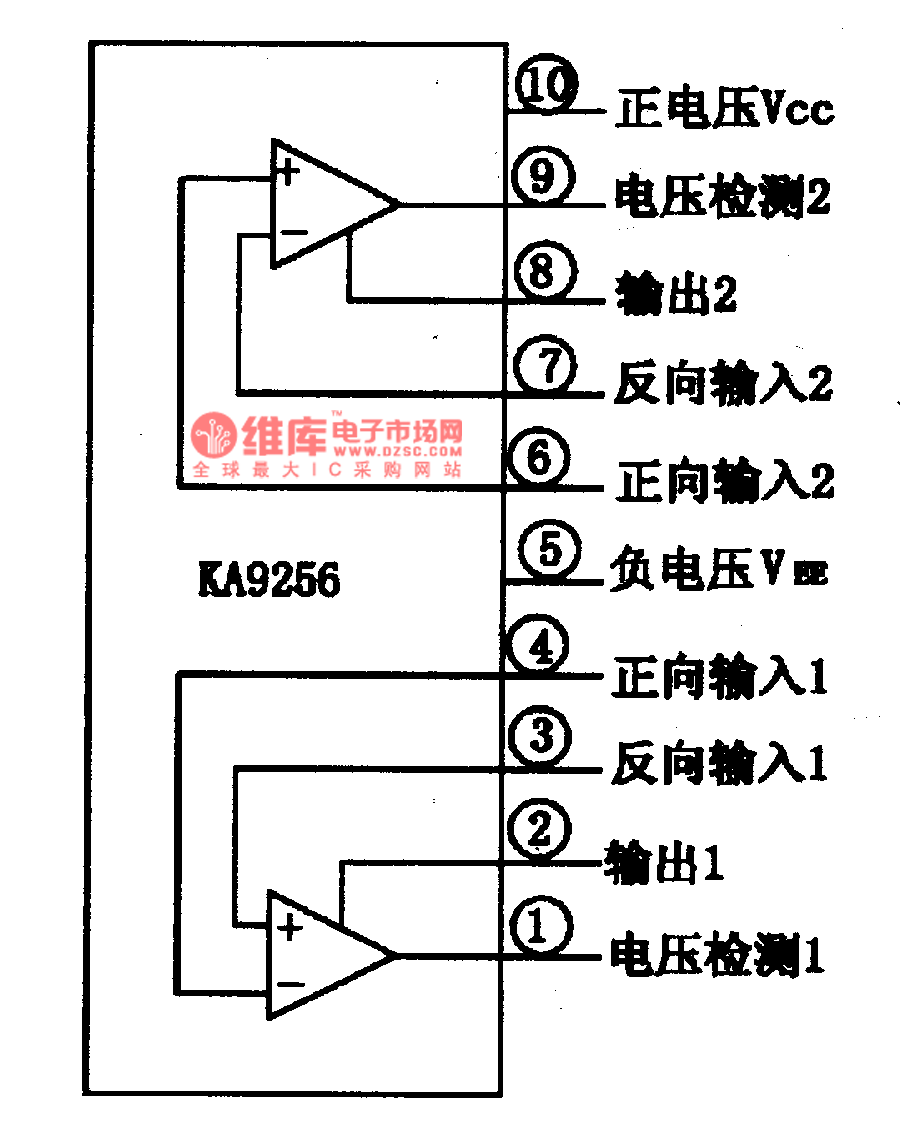

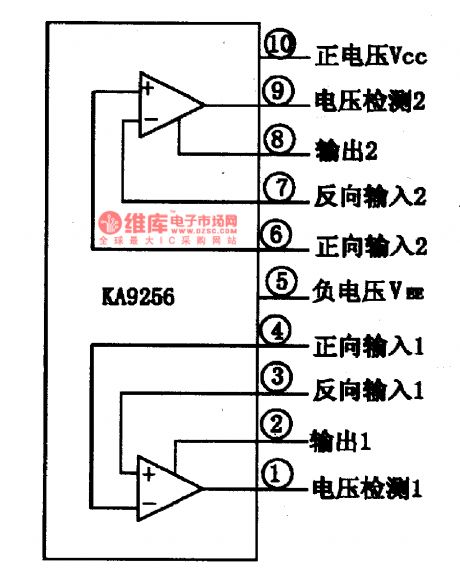

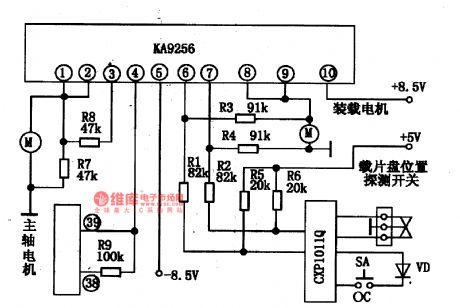

KA9256 is a two-way power drive integrated circuit diagram which is produced by South Korea's Samung, it is widely used in CD player(especially in car CD player) and videodisc player, it is as drive spindle motor, it feeds to motor or load motor. 1, KA9256 internal circuit block diagram and pin function The internal of manifold block KA9256 is composed of two-way same function power drive circuit, when the power voltage VCC=±15V, the maximum output current is about 1A. It adopts 12-foot in-line package, the internal circuit and pin function of the integrated block is shown as figure1-1. 2, KA9256 typcial application circuit The typcial application circuit of KA9256 integrated block is shown as figure1-2. Figure1-2, the internal circuit and pin function of KA9256 integrated block is shown. Figure 1-2, the typcial application circuit of KA9256 integrated block is shown
