LASER_BEAM_ACTIVATED_RELAY

Published:2009/7/14 11:29:00 Author:May | From:SeekIC

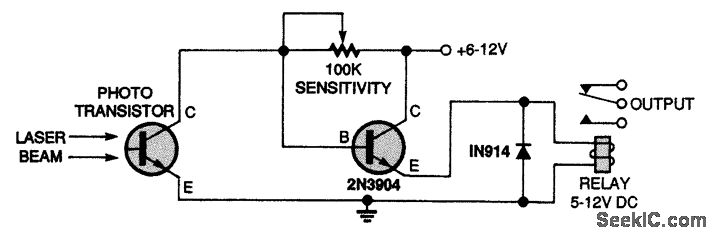

This two-transistor relay circuit will activate whenever the phototransistor is illuminated by the laser beam.
