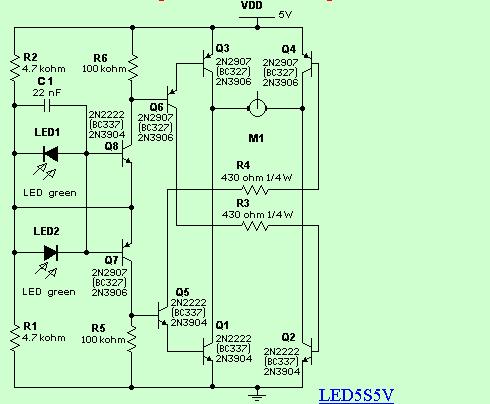

LED5S5V Simplified LED low power tracker

Published:2013/7/5 1:36:00 Author:muriel | Keyword: LED5S5V, Simplified, LED , low power tracker | From:SeekIC

I was looking for a much lower cost tracker for low power applications. One of these applications is a small lighting heliostat. This circuit uses small switching transistors. The maximum motor drive current is limited to about 250mA maximum at 5V. I've tested the circuit on voltages from 3V to 21V. With some component changes it should be useful to 63V in a 36V PV panel system although I haven't tried this yet. With higher voltage and the use of heat sinks on the bridge transistors much higher currents should be possible.
