LOW_DROPOUT_THREE_TERMINAL_REGULATORS_FOR_NEW_MICROPROCESSOR_APPLICATIONS

Published:2009/6/24 5:20:00 Author:May | From:SeekIC

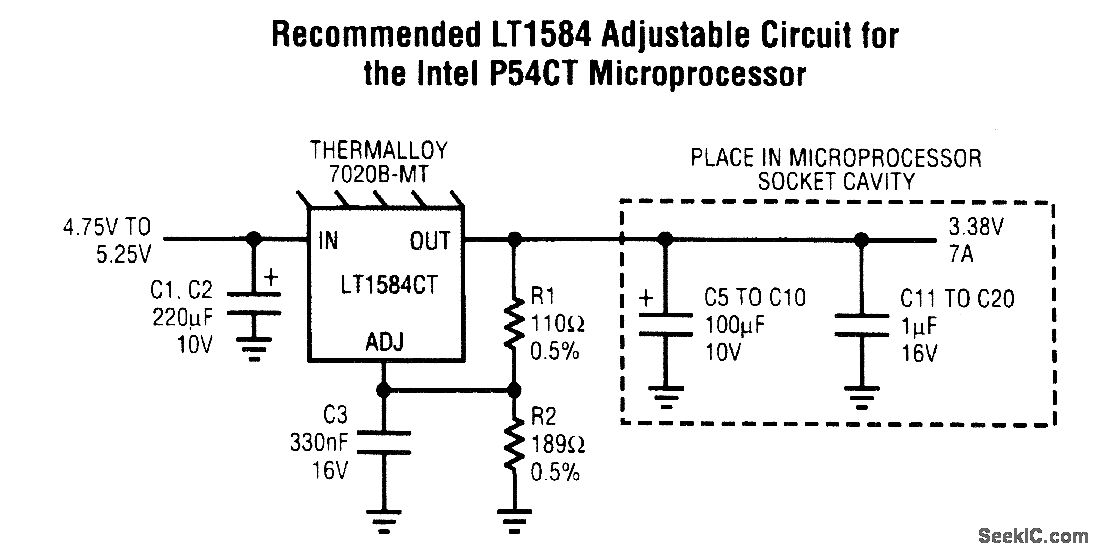

The LT1584/LT1585/LTL1587 are high-perf ormance, low-dropout regulators designed to meet the demands of the newest high speed, low voltage microprocessors. These devices are designed to regulate from 5-V supplies to output voltages between 1.25 V and 3.6 V. The LT1584 can provide up to 7 A of current, making it ideal for powerful Pentium processor or similar applications. The LT1585 can supply up to 4 A, while the LT1587 supplies up to 3 A. The excellent transient response capabil-tty allows thent to maintain good regulation even with significant load steps. Fixed 3.3 V, 3.45 V, 3.6 V and adjustable output voltages are available.
