M668 touch stepping dimming light circuit

Published:2011/4/19 6:54:00 Author:Nicole | Keyword: stepping dimming light | From:SeekIC

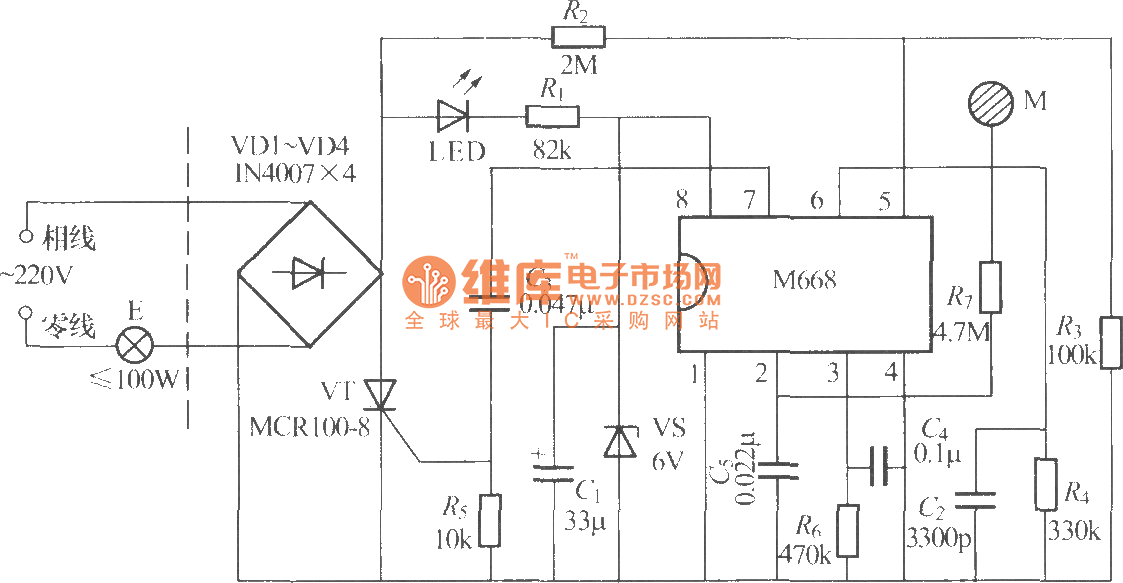

The figure is as shown, it is a touch stepping dimming light with M668 IC, the feature of it is its dimmer uses two-wire system connection, there are only two outgoing lines outward, so it canreplace the ordinary light switch, changing the ordinary light into touch four grades dimming light.
