MIP0254SP micro-consumption single chip switch power supply integrated circuit

Published:2011/6/8 22:08:00 Author:Christina | Keyword: micro-consumption, single chip, switch, power supply, integrated circuit | From:SeekIC

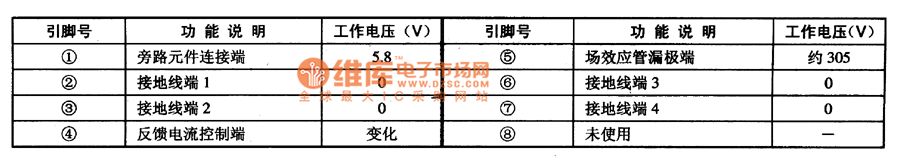

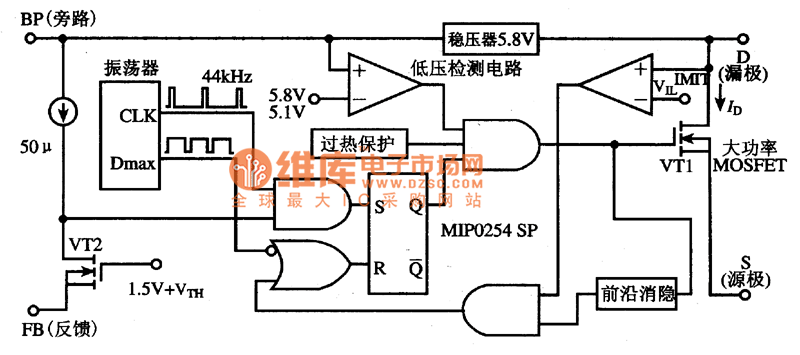

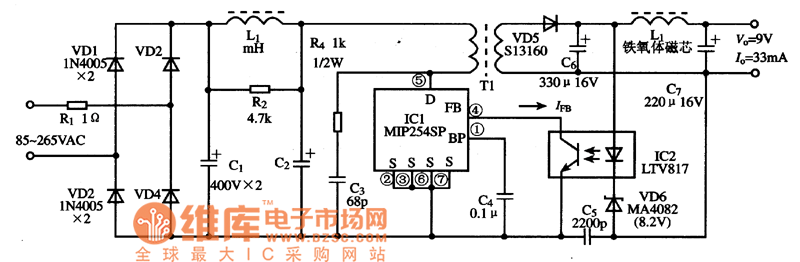

The MPO254SP is designed as a wide voltage range micro-consumption single chip switch power supply integrated circuit, and it can be used to make all kinds of AC adapters. 1.Features The MPO254SP is composed of the high power MOSFET (the VDS is 700V), the oscillator, the high voltage power supply and the current limiter. 2.Internal circuit block diagram and the pin functions The MIP0254SP integrated circuit is in the 8-pin DIP package, the internal circuit block diagram is as shown in the figure, the pin functions and data is as shown in the table. The internal circuit block diagram of the MPO254SP The pin functions and data of the MPO254SP 3. The typical application circuit The typical application circuit of the MP02545P is as shown in the figure.
